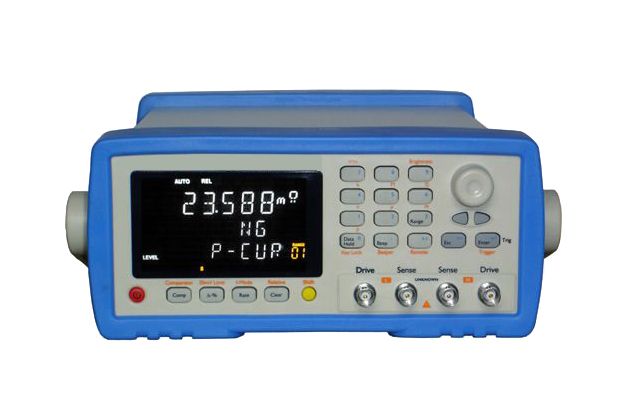

AT520

 Battery Voltage Meter,Battery Internal Resistance Meter
-
-
-
-
-
-
-
-
-
-
-
-
- Battery Internal Resistance Meter
- Four Colors VFD Display
- Vector Measurement, 3 Parameters Dispaly
- Comparator (sorting) Function): Build-in 30 sets comparators, HI/IN/LOW/GD/NG Display and Output
- Beep and Brightness can be Adjusted
- Four-terminal resistance measurement
- Internal,Manual,External and Remote Trig
- Keypad lock and data hold function
- Build-in RS232C and Handler,Optional GPIB Interface


-

-

-

-

-

-

-

-

-

-

-
| General Characteristics | |
| Parameter | AC resistance, DC voltage, X, Z, θ, L, |
| Accuracy | Resistance: 0.3% Voltage: 0.05% Inductance: 1% |
| Measurement Range | Resistance: 1μΩ - 3.2kΩ Voltage: 100μV - 60V DC Inductance: 10nH - 1H |
| Max Reading | Resistance: 32,000, Voltage: 60,000 |
| Dimension | 264mm (W)x107mm (H)x350mm (D) |
| Weight | 4kg |
