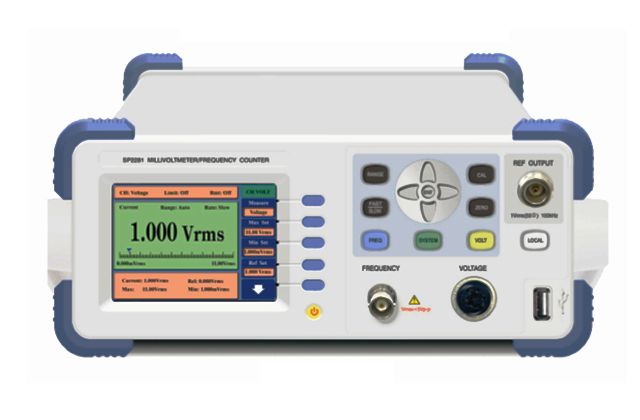

SP2281

SP2281

Digital RF Millivoltmeter/ frequency counter,9kHz - 1200MHz

                          • Digital RF Millivoltmeter/ Frequency Counter
                          • Controlled by advanced MCU,some advantages such as, high resolution, high precision and high reliablility.
                          • QVGA, using numerical keys
                          • Produced by SMT, new_type metal box
                          • MTBF:> 20000h
                          • RS-232 Interface, Option GPIB Interface,USB Interface
 General Characteristics
 Frequency Range of Voltage-1.2GHz RF Probe  9kHz~1200MHz
 Frequency Range of Voltage-2G Coaxial Detector  10kHz~2000MHz
 Frequency Range of Voltage-3G Coaxial Detector  10kHz~3000MHz
 Voltage Measurement Range  1mVrms~10Vrms 50Ω
 Level Measurement Range  -47dBm+33dBm,50Ω
 Voltage Ranging  4mVrms/40mVrms/400mVrms/4Vrms/10Vrms
 Dimension  255mm×370mm×100mm
 Weight  3.5kg
