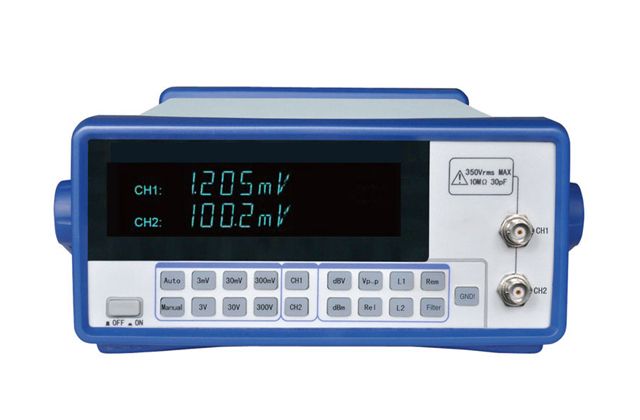

SM2050A
Digital AC Millivolt Meter
-
-
-
-
-
-
-
-
-
-
-
-
- Digital AC Millivolt Meter
- Bright large screen VFD display
- Digital display : 4 1/2 digits
- Frequency range 5 Hz to 5 MHz
- AC voltage 50 μV to 300 V
- ACV test resolution is up to 0.1μV
- Two independent input channels
- Auto or manual ranging can be selected
- Standard accessory interface is RS-232
-
-
-
-
-
-
-
-
-
-
-
| General Characteristics | |
| Frequency Range | 5Hz~5MHz |
| AC voltage | 50μV~300V |
| dBV | -86dBV~50dBV (0dBV=1V) |
| dBm | -83dBm~52dBm (0dBm=1mW 600Ω) |
| Vpp | 140μV~850V |
| AC Voltage Range | 4 1/2 digits |
| Dimension | 106mm×260mm×375mm |
| Weight | 3kg |
