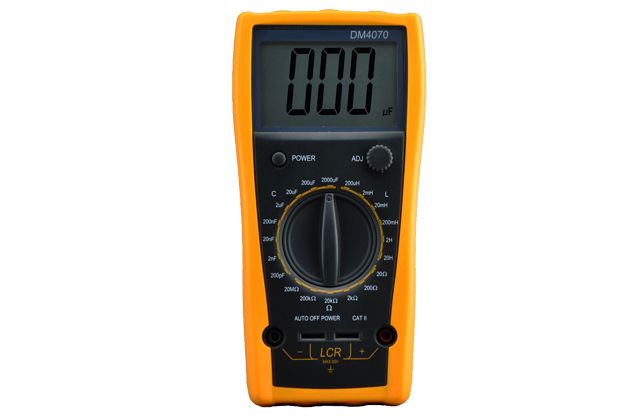

DM4070

 3 1/2 Digital LCR meter
-
-
-
-
-
-
-
-
-
-
-
-
- LCR meter with new type holster and streamline design
- Large LCD makes the reading clearly
- Strong antimagnetic and anti-jamming performance
- Full protect function, capacitor with the function of self discharge
- Unit symbol display, easy to operate


-

-

-

-

-

-

-

-

-

-

-
| General Characteristics | |
| Capacitance | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF |
| Inductance | 200uH/2mH/20mH/200mH/2H/20H |
| Resistance | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/20MΩ |
| Sampling Date | 3 times/s |
| Max. Display | 1999 |
| Meter Size | 185mm×93mm×35mm |
| Weight | 290g(including battery) |
