Purpose
- remote monitoring of testing process of different equipment within the safety fence where the presence of operators is hazardous or not required.

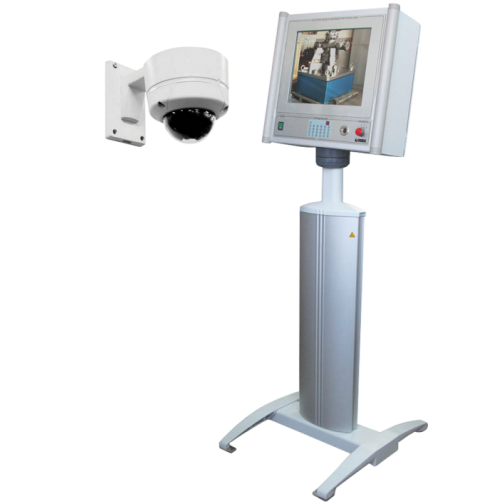

Complete set
- control panel;
- high quality turning video cameras of dome type, 2 or 4 pcs. (5 by order);
- set of fastening devices;
- set of connecting cables;
- documentation.
|
Parameter |
SVN |
|
Video monitor: |
|
|
- type; |
colour, not touch sensitive |
|
- diagonal, inches. |
17 |
|
Video camera: |
|
|
- type; |
dome-type |
|
- sensitivity, lux; |
1 |
|
- zoom (digital/optical); |
12х/18х |
|
- horizontal turn angle, deg.; |
360 |
|
- vertical turn angle, deg. |
90 |
|
Supply voltage, V/Hz |
230/50 |
|
Consumed power, kW, not exceeding |
300 |
|
Operation conditions: |
|
|
- ambient air temperature, ºС (ºF); |
from +10 (+50) to +35 (+95) |
|
- relative air humidity, (at 25ºС (77 ºF)), %; |
from 45 to 80 |
|
- atmospheric pressure, bar (psi). |
from 0,84 (12) to 1 (15) |
|
Overall dimensions of control panel, (LxWxH), mm (″), not exceeding |
600х700х1685 (24x28x67) |
|
Weight, kg (lbs), not exceeding |
85 (188) |
Advantages
- Visual monitoring of testing process performed within safety fence from different sides.
- All the control elements are located at industrial upright of high protection rate.Uprights are installed at foundations using anchor bolts.
- Monitor of industrial version has IP 54 protection against dust and moisture providing operability in conditions of increased humidity, dustiness and significant difference of temperatures.
