Purpose

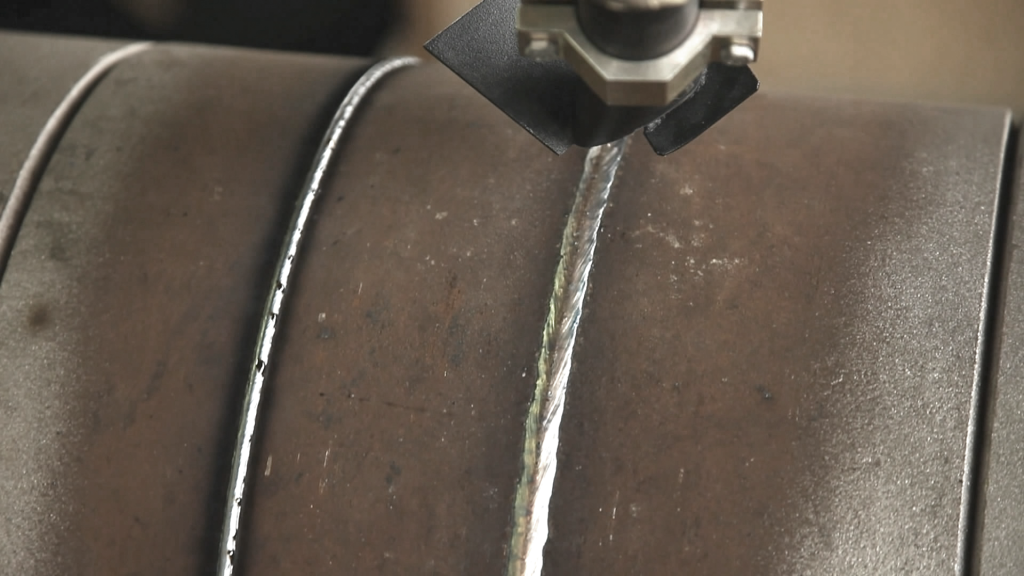

- girth seam welding of pipeline parts with diameter from 300 up to 700 mm (12 ... 28") with MIG/MAG process.
|
Parameter |
USKSH-3G(F) |
|
Nominal internal diameter of welded valves (DN), mm (″) |
300...700 (12...28) |
|
Load capacity including the device, kg |
10000 |
|
Welding head number, pcs |
2 |
|
Arc protection |
gas (flux) |
|
Diameter of electrode wire, mm (″) |
1,2; 1,6 (2...5) (0.047; 0,069) (0,079...0,2) |
|
Rated welding current, at 100% duty cycle, A |
420 (1000) |
|
Overall dimensions (LxWxH), mm (″) |
3000х2500х3100 (118х98х122) |
Advantages
- Simultaneous operation of two welding heads provides high performance of the unit.

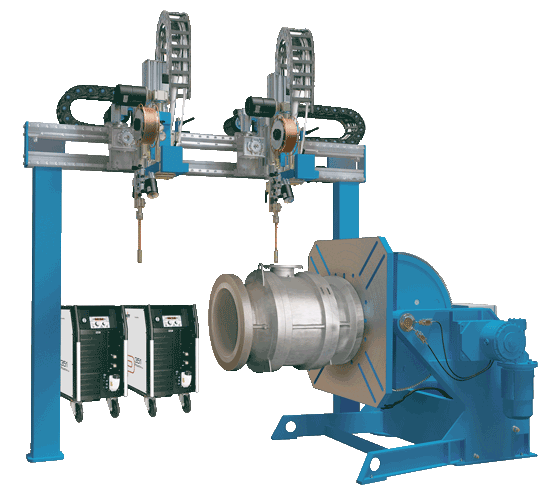

- Standard set of the unit includes: rotator, gantry, two welding heads and two welders.
- Tilting rotator face-plate.
- Continuous adjustment of welding speed.
- Control system of the unit is based on industrial controller, thus allowing operator to set welding parameters (welding speed, number of faceplate revolutions etc.) while using touch sensitive control panel.
- The welding unit can be optionally completed with the following accessories:*
- flux recovery system (for “F” version);
- tactile and optical tracking system;
- electrode oscillating mechanism;
- water recycling station (SOV);
- video control system;
- idle roller bed.
- Simplicity and ease of operation.
* Upon customer request.
