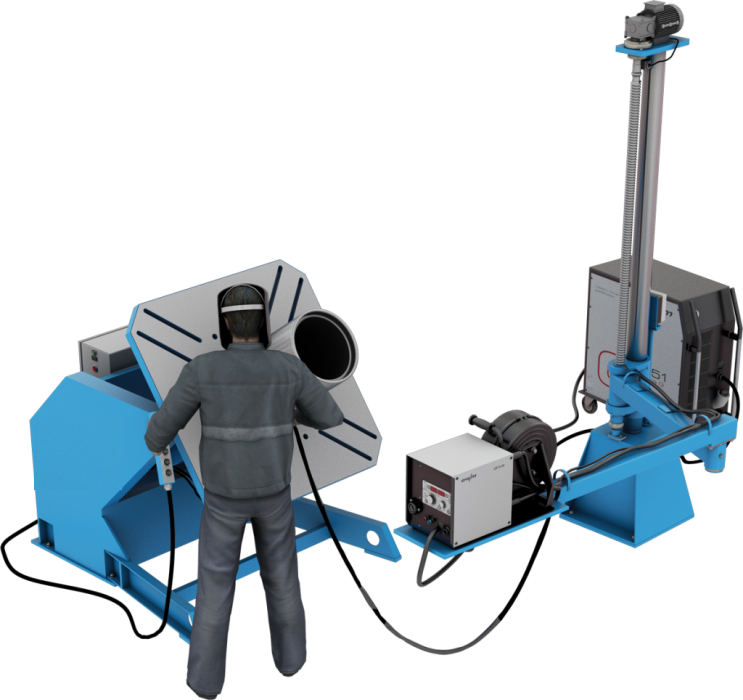

Purpose
- mechanization of semi-automatic welding machine.
|
Parameter |
RMS-1 |
|
Maximum load capacity of the platform, mm (″) |
50 (2) |
|
Maximum diameter of service area, mm (″) |
5000 (197) |
|
Maximum lifting height, mm (″) |
2450 (96) |
|
Minimum lifting height, mm (″) |
950 (37) |
|
Maximum torque on the axis of rotation, Nm |
6300 |
|
Maximum torque in relation to faceplate supporting plane, Nm |
16000 |
|
Maximum load capacity, kg |
3150 |
|
Maximum diameter of girth welds, mm (″) |
1800 (71) |
|
Maximum faceplate tilt angle, deg. |
135 |
|
Adjustment of faceplate rotation speed |
smooth |
|
The height from the floor to the axis of rotation of the spindle when the faceplate in a horizontal position, mm (″) |
950 (37) |
|
Overall dimensions (LхWхH), mm (″): |
|
|
- column; |
3150×501×2670 (124x20x105) |
|
- platform; |
700×300×90 (28x12x4) |
|
- rotator. |
1690х1500х1100 (67x59x43) |
|
Weight, kg: |
|
|
- column with platform; |
265 |
|
- rotator. |
1400 |
Advantages
- Multi-purpose work station allows to optimize the process of welding and to clear the floor space.
- Flexible console of a column allows placing a wire feeding device into a convenient position in the service area.
- Large service area.
- The range of faceplate rotation speed allows to weld products with a big range of diameters.
- Faceplate rotation is switched on / off by a footswitch (pedal).
